自学鸿蒙应用开发(17)- TabList和Tab

共 4846字,需浏览 10分钟

 ·

2021-01-14 12:05

本文介绍在鸿蒙应用中TabList和TabList.Tab组件的基本用法。

准备TabList页面布局

在layout目录下创建TabList布局,将其命名为ability_tablist.xml。

<DirectionalLayout    xmlns:ohos="http://schemas.huawei.com/res/ohos"    ohos:height="match_parent"    ohos:width="match_parent"    ohos:orientation="vertical">    <TabList        ohos:id="$+id:tab_list"        ohos:background_element="#FFFF7F"        ohos:top_margin="10vp"        ohos:tab_margin="24vp"        ohos:tab_length="140vp"        ohos:text_size="20fp"        ohos:height="36vp"        ohos:width="match_parent"        ohos:layout_alignment="center"        ohos:orientation="horizontal"        ohos:text_alignment="center"        ohos:normal_text_color="#999999"        ohos:selected_text_color="#000000"        ohos:selected_tab_indicator_color="#000000"        ohos:selected_tab_indicator_height="2vp"/>    <DirectionalLayout        ohos:id="$+id:tab_container"        ohos:height="match_parent"        ohos:width="match_parent">    DirectionalLayout>DirectionalLayout>

布局代码中第7行~第22行的用于生成TabList组件,定义了TabList的基本属性;第23行~第27行用于生成Tab页面的容器,目前还没有具体内容,稍后有具体代码生成。


准备Image页面

Image页面主要包含一个Image文件和简单的文字表示:

<DirectionalLayout    xmlns:ohos="http://schemas.huawei.com/res/ohos"    ohos:height="match_parent"    ohos:width="match_parent"    ohos:orientation="vertical">    <Component        ohos:height="0vp"        ohos:weight="3"        ohos:width="match_parent"    />    <DirectionalLayout        xmlns:ohos="http://schemas.huawei.com/res/ohos"        ohos:height="match_content"        ohos:width="match_content"        ohos:layout_alignment="center"        ohos:orientation="vertical">        <Image            ohos:id="$+id:image"            ohos:width="match_content"            ohos:height="match_content"            ohos:layout_alignment="center"            ohos:image_src="$media:DevEco"        />        <Component            ohos:height="20vp"            ohos:width="match_parent"            />        <Text            ohos:id="$+id:text_helloworld"            ohos:height="match_content"            ohos:width="match_content"            ohos:layout_alignment="horizontal_center"            ohos:text="Image Tab"            ohos:text_color="#007F00"            ohos:text_size="100"        />    DirectionalLayout>    <Component        ohos:height="0vp"        ohos:weight="5"        ohos:width="match_parent"        />DirectionalLayout>

准备Video页面

Video页面包含一个动画,稍微复杂一些。首先是页面本身::

<DirectionalLayout    xmlns:ohos="http://schemas.huawei.com/res/ohos"    ohos:height="match_parent"    ohos:width="match_parent"    ohos:orientation="vertical">    <Component        ohos:height="0vp"        ohos:weight="3"        ohos:width="match_parent"    />    <DirectionalLayout        xmlns:ohos="http://schemas.huawei.com/res/ohos"        ohos:height="match_content"        ohos:width="match_content"        ohos:layout_alignment="center"        ohos:orientation="vertical">        <Component            ohos:id="$+id:video_area"            ohos:height="300vp"            ohos:width="300vp"            />        <Component            ohos:height="20vp"            ohos:width="match_parent"            />        <Text            ohos:id="$+id:text_helloworld"            ohos:height="match_content"            ohos:width="match_content"            ohos:layout_alignment="horizontal_center"            ohos:text="Video Tab"            ohos:text_color="#0000FF"            ohos:text_size="100"        />    DirectionalLayout>    <Component        ohos:height="0vp"        ohos:weight="5"        ohos:width="match_parent"        />DirectionalLayout>

这个文件和Image页面区别不大,只是在用Component组件代替了Image组件。而动画的实际内容则是由graphic目录中的animation_element.xml文件决定:

<animation-list xmlns:ohos="http://schemas.huawei.com/res/ohos"                ohos:oneshot="false">    <item ohos:element="$media:video01" ohos:duration="100"/>    <item ohos:element="$media:video02" ohos:duration="100"/>    <item ohos:element="$media:video03" ohos:duration="100"/>    <item ohos:element="$media:video04" ohos:duration="100"/>    <item ohos:element="$media:video05" ohos:duration="100"/>    <item ohos:element="$media:video06" ohos:duration="100"/>    <item ohos:element="$media:video07" ohos:duration="100"/>    <item ohos:element="$media:video08" ohos:duration="100"/>    <item ohos:element="$media:video09" ohos:duration="100"/>    <item ohos:element="$media:video10" ohos:duration="100"/>    <item ohos:element="$media:video11" ohos:duration="100"/>animation-list>


生成TabList画面

TabList的每个Tab页面需要由代码生成,具体参见下面的页面类

package com.example.helloharmony.slice;
import com.example.helloharmony.ResourceTable;import ohos.aafwk.ability.AbilitySlice;import ohos.aafwk.content.Intent;import ohos.agp.components.*;import ohos.agp.components.element.FrameAnimationElement;
import java.io.Console;
public class TablistAbilitySlice extends AbilitySlice { private Component imageContent; private Component videoContent; private FrameAnimationElement frameAnimationElement; @Override public void onStart(Intent intent) { super.onStart(intent); super.setUIContent(ResourceTable.Layout_ability_tablist); TabList tabList = (TabList) findComponentById(ResourceTable.Id_tab_list); tabList.setTabLength(200); // 设置Tab的宽度 tabList.setTabMargin(26); // 设置两个Tab之间的间距 TabList.Tab tab1 = tabList.new Tab(getContext()); tab1.setText("Image"); tabList.addTab(tab1); TabList.Tab tab2 = tabList.new Tab(getContext()); tab2.setText("Video"); tabList.addTab(tab2); AbilitySlice slice = this; tabList.addTabSelectedListener(new TabList.TabSelectedListener() { @Override public void onSelected(TabList.Tab tab) { ComponentContainer container = (ComponentContainer) findComponentById(ResourceTable.Id_tab_container); if(tab.getText().equals("Image")) { imageContent = LayoutScatter.getInstance(slice).parse(ResourceTable.Layout_iamge_tab, null, false); container.addComponent(imageContent); } else { videoContent = LayoutScatter.getInstance(slice).parse(ResourceTable.Layout_video_tab, null, false); frameAnimationElement = new FrameAnimationElement(slice.getContext(), ResourceTable.Graphic_animation_element); Component videoArea = videoContent.findComponentById(ResourceTable.Id_video_area); videoArea.setBackground(frameAnimationElement); frameAnimationElement.start(); container.addComponent(videoContent); } }
@Override public void onUnselected(TabList.Tab tab) { if(tab.getText().equals("Video")) { frameAnimationElement.start(); } ComponentContainer container = (ComponentContainer) findComponentById(ResourceTable.Id_tab_container); container.removeAllComponents(); }
@Override public void onReselected(TabList.Tab tab) { ComponentContainer container = (ComponentContainer) findComponentById(ResourceTable.Id_tab_container); if(tab.getText().equals("Image")) { container.addComponent(imageContent); } else { frameAnimationElement.start(); container.addComponent(videoContent); } } }); //最开始选选择tab1 tabList.selectTab(tab1); }
@Override public void onActive() { super.onActive(); }
@Override public void onForeground(Intent intent) { super.onForeground(intent); }}

代码第22行~第27行分别生成了Image和Video两个Tab页。

第29行~第69行是为TabList的各种事件提供响应。需要响应的处理主要有Tab页选择,Tab页取消选择和Tab重新选择。代码中根据当前选中的Tab页面生成或选择不同的组件。

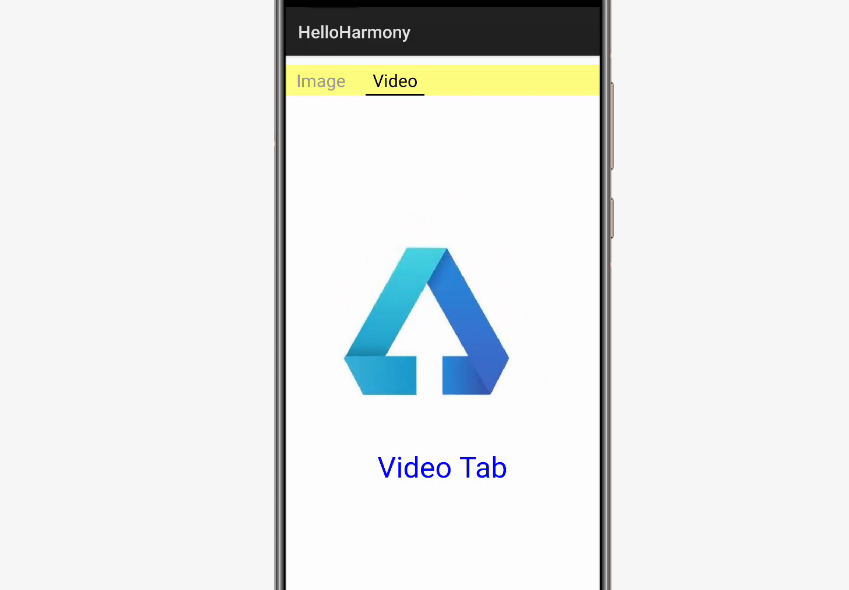

画面显示如下:


参考文档

TabList和Tab组件

https://developer.harmonyos.com/cn/docs/documentation/doc-guides/ui-java-component-tablist-tab-0000001062229749

TabList类

https://developer.harmonyos.com/cn/docs/documentation/doc-references/tablist-0000001054238721

Tab List.Tab类

https://developer.harmonyos.com/cn/docs/documentation/doc-references/tablist_tab-0000001054678691

动画开发指导

https://developer.harmonyos.com/cn/docs/documentation/doc-guides/ui-java-animation-0000000000580278
