文字识别（OCR）目前在多个行业中得到了广泛应用，比如金融行业的单据识别输入，餐饮行业中的发票识别，交通领域的车票识别，企业中各种表单识别，以及日常工作生活中常用的身份证，驾驶证，护照识别等等。 OCR（文字识别）是目前常用的一种AI能力。

OCR工具箱功能:

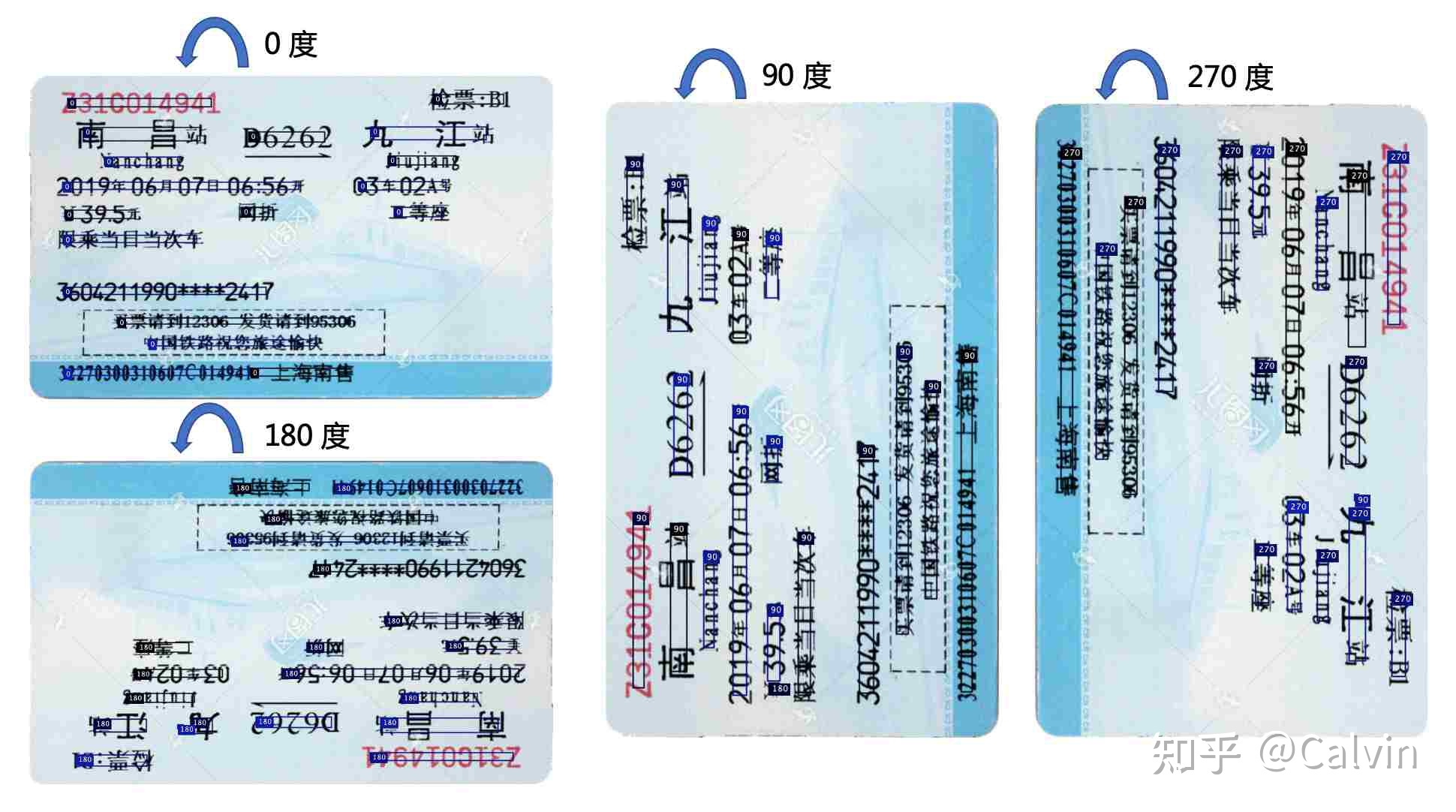

方向检测，支持4个文字方向：0度、90度、180度、270度。

2. 图片旋转
3. 文字识别，提供三个模型：mobile模型，light模型，服务器端大模型。
4. 版面分析（支持5个类别, 用于配合文字识别，表格识别的流水线处理）
Text，Title，List，Table，Figure
5. 表格识别

生成html表格
生成excel文件

运行OCR识别例子

1.1 文字方向检测：

例子代码: OcrDetectionExample.java
运行成功后，命令行应该看到下面的信息:

[INFO ] - Result image has been saved in: build/output/detect_result.png
[INFO ] - [
	class: "0", probability: 1.00000, bounds: [x=0.073, y=0.069, width=0.275, height=0.026]
	class: "0", probability: 1.00000, bounds: [x=0.652, y=0.158, width=0.222, height=0.040]
	class: "0", probability: 1.00000, bounds: [x=0.143, y=0.252, width=0.144, height=0.026]
	class: "0", probability: 1.00000, bounds: [x=0.628, y=0.328, width=0.168, height=0.026]
	class: "0", probability: 1.00000, bounds: [x=0.064, y=0.330, width=0.450, height=0.023]
]

输出图片效果如下：

1.2 文字方向检测帮助类（增加置信度信息显示，便于调试）：

例子代码: OcrDetectionHelperExample.java
运行成功后，命令行应该看到下面的信息:

[INFO ] - Result image has been saved in: build/output/detect_result_helper.png
[INFO ] - [
	class: "0 :1.0", probability: 1.00000, bounds: [x=0.073, y=0.069, width=0.275, height=0.026]
	class: "0 :1.0", probability: 1.00000, bounds: [x=0.652, y=0.158, width=0.222, height=0.040]
	class: "0 :1.0", probability: 1.00000, bounds: [x=0.143, y=0.252, width=0.144, height=0.026]
	class: "0 :1.0", probability: 1.00000, bounds: [x=0.628, y=0.328, width=0.168, height=0.026]
	class: "0 :1.0", probability: 1.00000, bounds: [x=0.064, y=0.330, width=0.450, height=0.023]
]

输出图片效果如下：

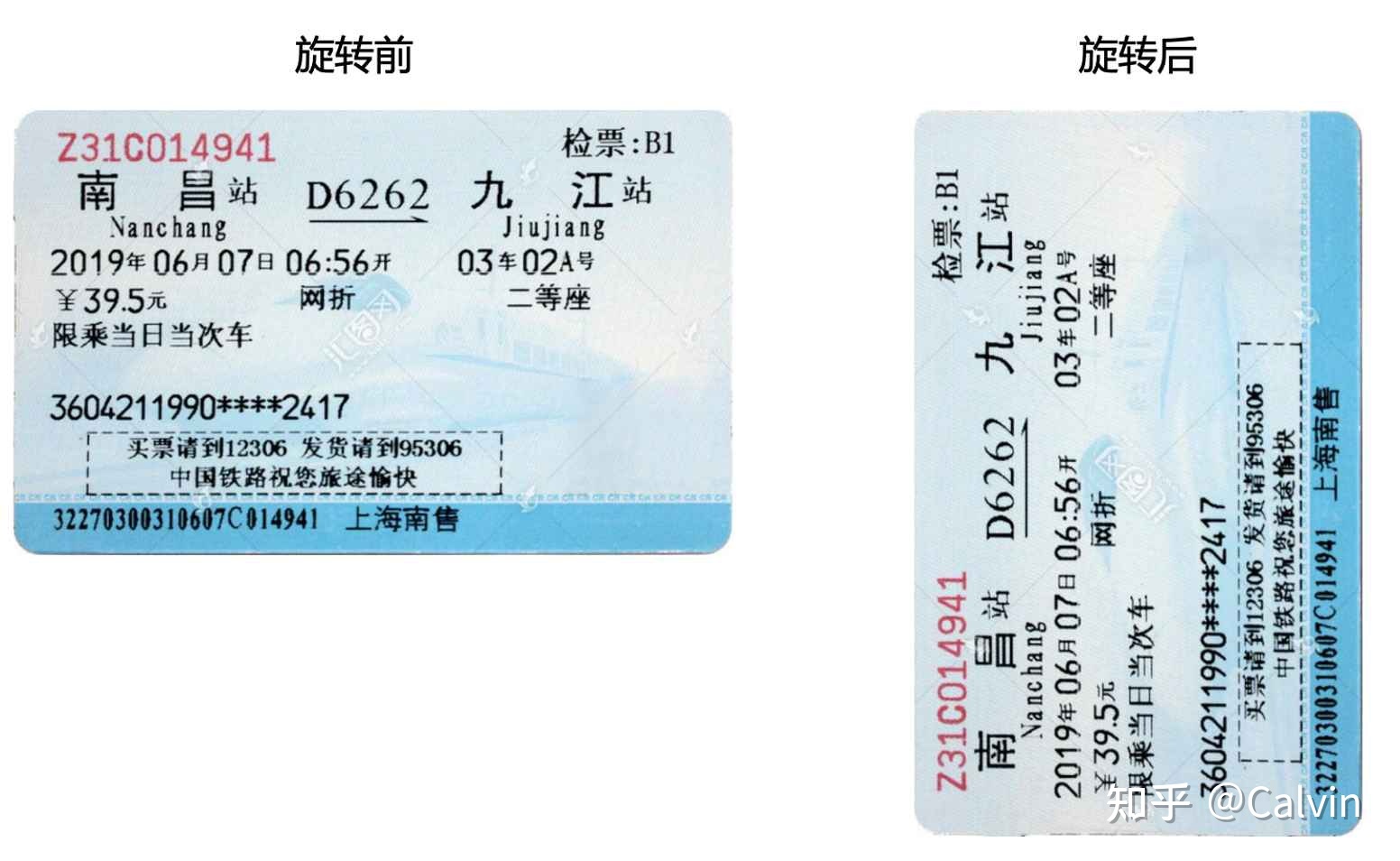

2. 图片旋转：

每调用一次rotateImg方法，会使图片逆时针旋转90度。

例子代码: RotationExample.java

3. 文字识别：

再使用本方法前，请调用上述方法使图片文字呈水平(0度)方向。

例子代码: LightOcrRecognitionExample.java
运行成功

后，命令行应该看到下面的信息:

[INFO ] - [
	class: "你", probability: -1.0e+00, bounds: [x=0.319, y=0.164, width=0.050, height=0.057]
	class: "永远都", probability: -1.0e+00, bounds: [x=0.329, y=0.349, width=0.206, height=0.044]
	class: "无法叫醒一个", probability: -1.0e+00, bounds: [x=0.328, y=0.526, width=0.461, height=0.044]
	class: "装睡的人", probability: -1.0e+00, bounds: [x=0.330, y=0.708, width=0.294, height=0.043]
]

输出图片效果如下：

4. 版面分析：

运行成功后，命令行应该看到下面的信息:

[INFO ] - [
	class: "Text", probability: 0.98750, bounds: [x=0.081, y=0.620, width=0.388, height=0.183]
	class: "Text", probability: 0.98698, bounds: [x=0.503, y=0.464, width=0.388, height=0.167]
	class: "Text", probability: 0.98333, bounds: [x=0.081, y=0.465, width=0.387, height=0.121]
	class: "Figure", probability: 0.97186, bounds: [x=0.074, y=0.091, width=0.815, height=0.304]
	class: "Table", probability: 0.96995, bounds: [x=0.506, y=0.712, width=0.382, height=0.143]
]

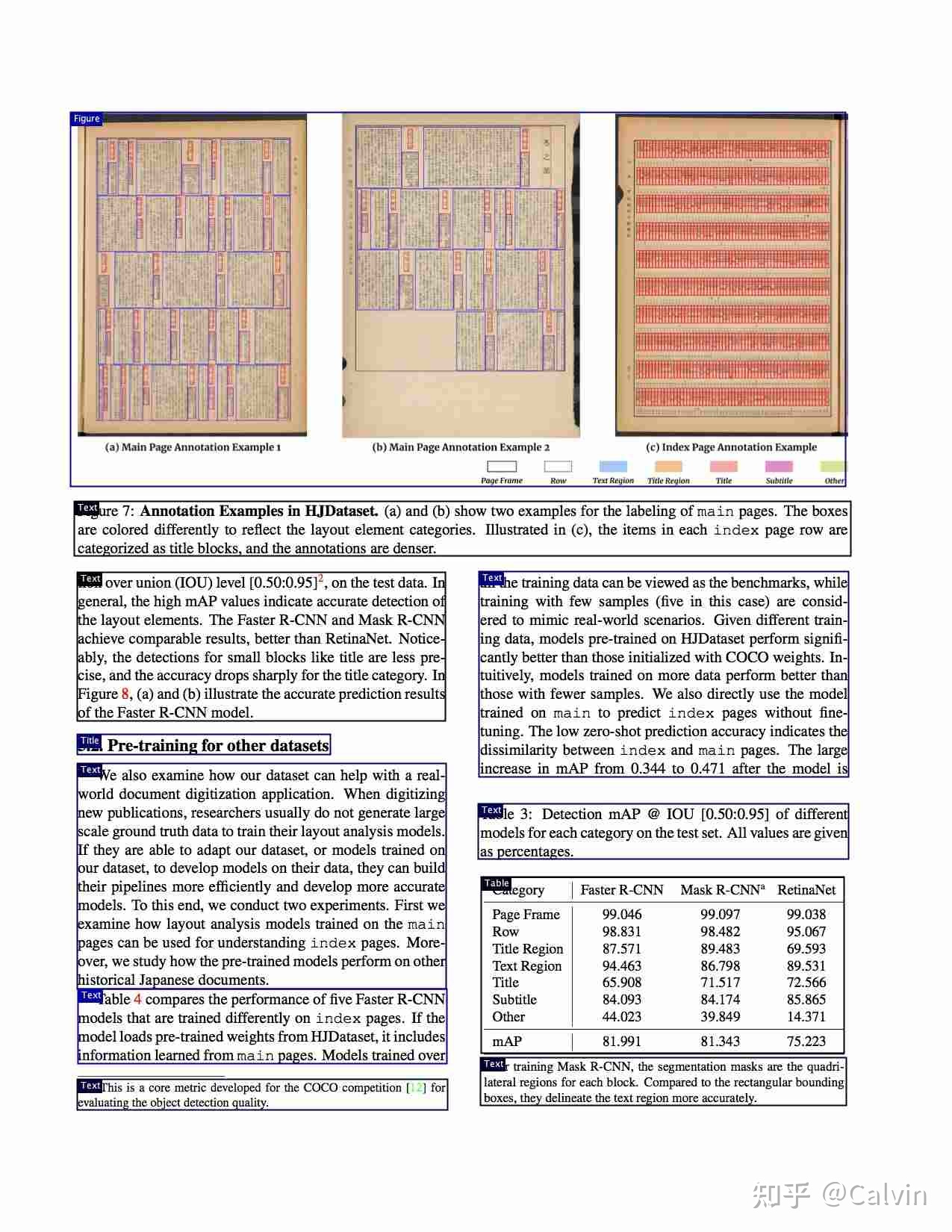

输出图片效果如下：

5. 表格识别：

运行成功后，命令行应该看到下面的信息:




...



     Methods
     R
     P
     F
     FPS




     SegLink[26]
     70.0
     86.0
     770
     89


     PixelLink[4j
     73.2
     83.0
     77.8

Methods	R	P	F	FPS
SegLink[26]	70.0	86.0	770	89
PixelLink[4j	73.2	83.0	77.8

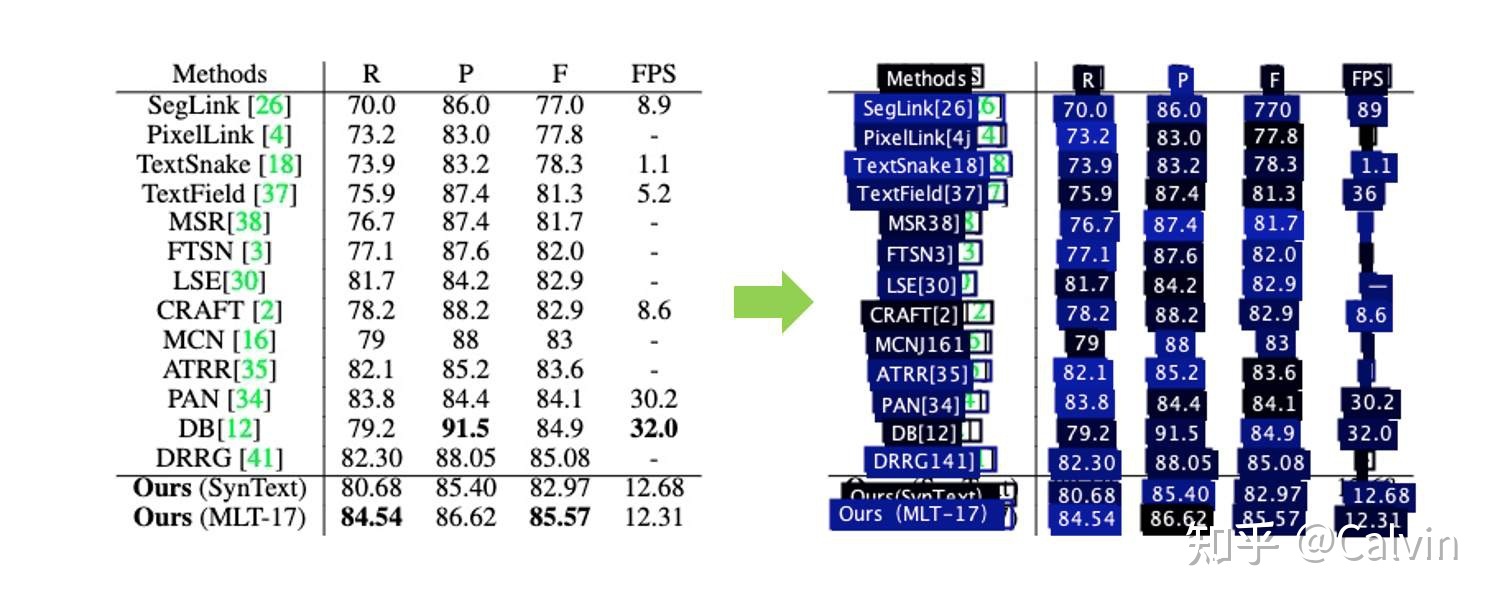

输出图片效果如下：

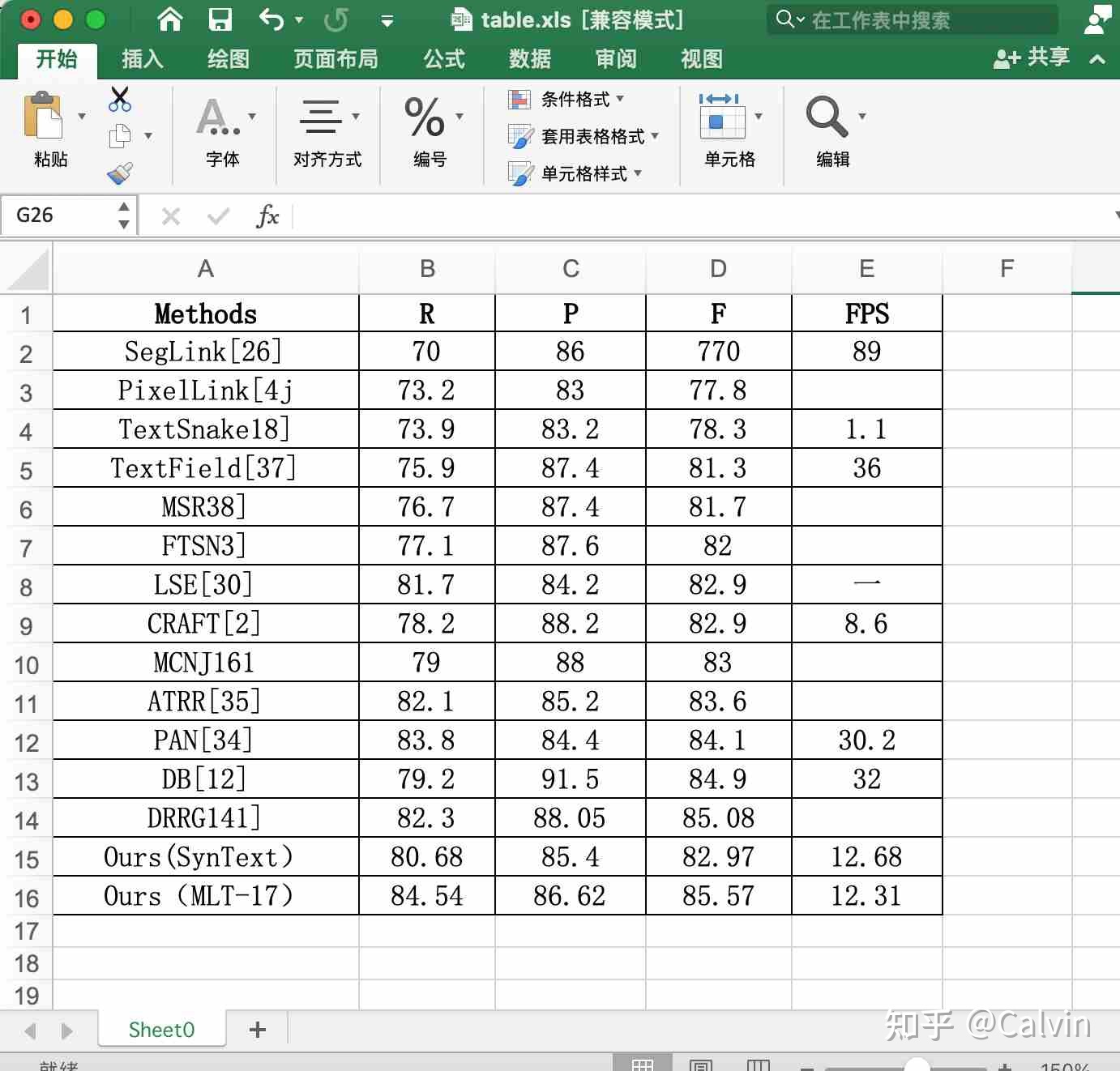

生成excel效果如下：

Github & Gitee 代码地址:

https://github.com/mymagicpower/AIAS/tree/main/1_image_sdks/text_recognition/ocr_sdk https://gitee.com/mymagicpower/AIAS/tree/main/1_image_sdks/text_recognition/ocr_sdk
